Product Summary
The MT88L70AS is a complete 3 Volt, DTMF receiver integrating both the bandsplit filter and digital decoder functions. The filter section uses switched capacitor techniques for high and low group filters; the decoder of the MT88L70AS uses digital counting techniques to detect and decode all 16 DTMF tonepairs into a 4-bit code. External component count is minimized by on chip provision of a differential input amplifier, clock oscillator and latched three-state bus interface. Applications of the MT88L70AS are Paging systems, Repeater systems/mobile radio, Credit card systems, Remote control, Personal computers, Telephone answering machine.
Parametrics
MT88L70AS absolute maximum ratings: (1)DC Power Supply Voltage VDD: 7 V; (2)Voltage on any pin VI: VSS-0.3 to VDD+0.3 V; (3)Current at any pin (other than supply) II: 10 mA; (4)Storage temperature TSTG: -65 to +150 ℃; (5)Package power dissipation PD: 500 mW.
Features
MT88L70AS features: (1)2.7 - 3.6 volt operation; (2)Complete DTMF receiver; (3)Low power consumption; (4)Internal gain setting amplifier; (5)Adjustable guard time; (6)Central office quality; (7)Power-down mode; (8)Inhibit mode; (9)Functionally compatible with Mitel’s MT8870D.

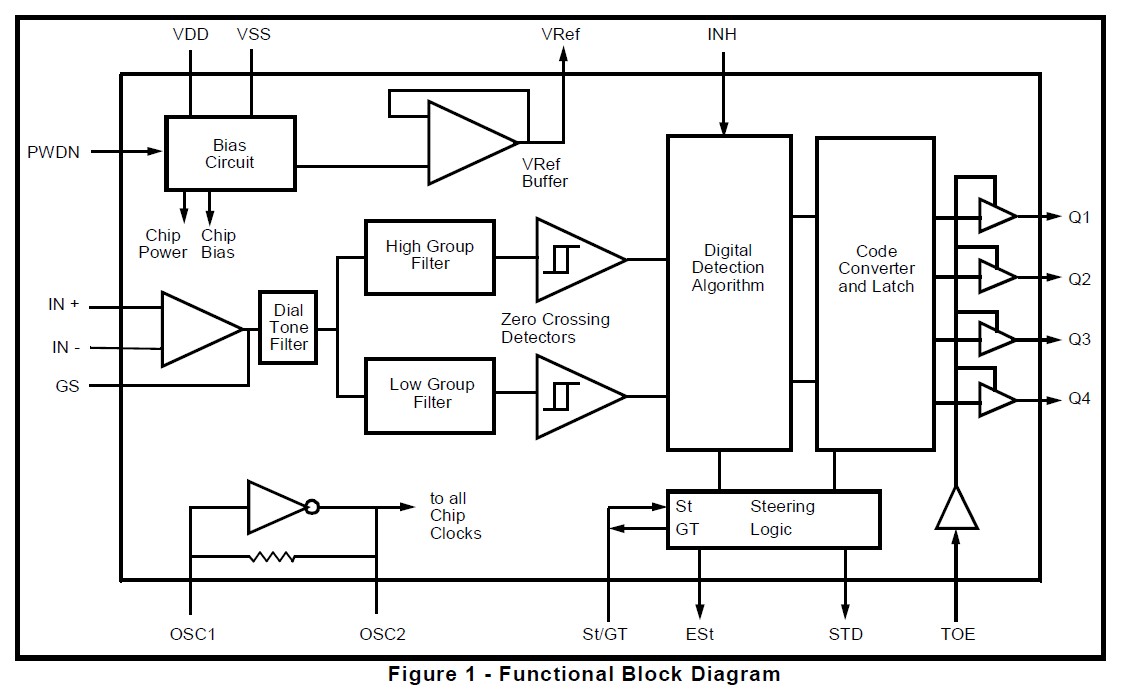

Diagrams
