Product Summary
The T495X227K016ZTE100 is a Low ESR MnO2 Tantalum Surface Mount Capacitor. The device is designed for demanding applications that require high surge current and high ripple current capability. The T495X227K016ZTE100 builds upon the proven capabilities of our industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability, and improved resistance to high in-rush currents. Typical applications of the T495X227K016ZTE100 include decoupling and filtering in industrial and automotive end applications, such as DC/DC converters, portable electronics, telecommunications, and control units requiring high ripple current capability.
Parametrics
T495X227K016ZTE100 absolute maximum ratings: (1)Operating Temperature: -55 to 125℃; (2)Rated Capacitance Range: 0.47 – 1,000 μF @ 120 Hz/25℃; (3)Capacitance Tolerance: K Tolerance (10%), M Tolerance (20%); (4)Rated Voltage Range: 2.5 – 50 V; (5)Leakage Current: ≤ 0.01 CV (μA) at rated voltage after 5 minutes.
Features
T495X227K016ZTE100 features: (1)Meets or exceeds EIA Standard 535BAAC; (2)Taped and reeled per EIA 481–D; (3)High surge current capability; (4)Optional gold-plated terminations; (5)High ripple current capability; (6)100% surge current test on C, D, E, U, V, X sizes; (7)100% steady-state accelerated aging; (8)Capacitance values of 0.1 μF to 1,000 μF; (9)Tolerances of ±10% and ±20%; (10)Voltage rating of 2.5 – 50 VDC; (11)Extended range values; (12)Available tested to DSCC 95158; (13)RoHS Compliant and lead-free terminations; (14)Operating temperature range of -55 to +125℃.

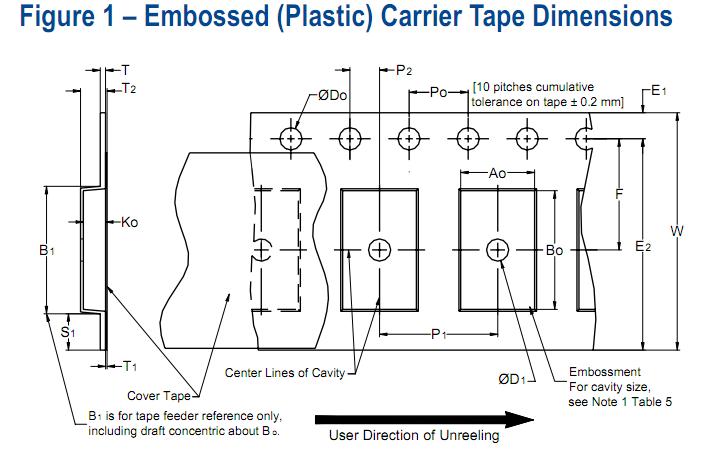

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

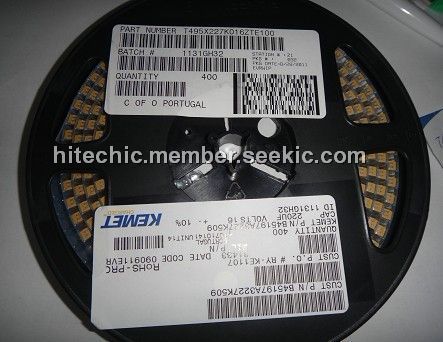

 T495X227K016ZTE100 |
Kemet |
Tantalum Capacitors - Solid SMD 16volts 220uF 10% |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
T495 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
T495A105K020AHE3K0 |
Kemet |
Tantalum Capacitors - Solid SMD 20 volts 1.0uF 10% Case A ESR=3000 |
Data Sheet |
|
|
||||||||||||
|
T495A105K020ATE3K0 |
Kemet |
Tantalum Capacitors - Solid SMD 20 volts 1.0uF 10% Case A ESR=3000 |
Data Sheet |
|
|
||||||||||||
|
T495A105M020ZTE3K0 |
Kemet |
Tantalum Capacitors - Solid SMD 1.00UF 20.0V |
Data Sheet |
Negotiable |
|
||||||||||||
|
T495A475K010ATE1K3 |
Kemet |
Tantalum Capacitors - Solid SMD 10 volts 4.7uF 10% Case A ESR=1300 |
Data Sheet |
|
|
||||||||||||
|
T495A106M010ATE1K8 |
Kemet |
Tantalum Capacitors - Solid SMD 10volts 10uF 20% A Case |
Data Sheet |
|
|
||||||||||||
