TOP224YN

Three-terminal Off-line PWM Switch, -0.3 to 700V, 100 mA, Lowest cost, lowest component count switcher

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.30~1.50

PartNumber:: TOP224YN

Brand:: Power Integrations, Inc. - Power | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-04

From Other Seller

Part Number:TOP224YN
US $1.30 - 1.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

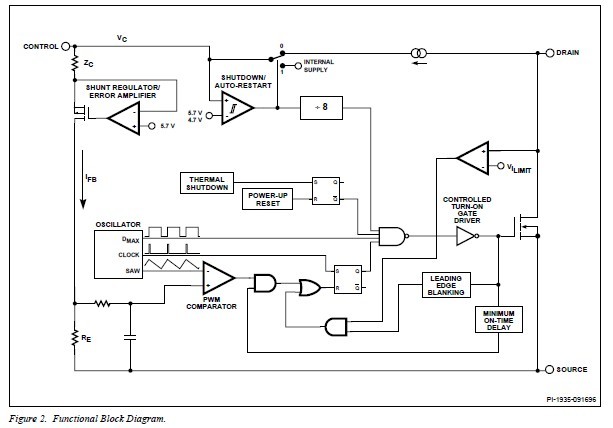

The TOP224YN is a three-terminal off-line PWM switch. It is more cost effective and provides several enhancements over the first generation TOPSwitch family. The TOP224YN extends the power range from 100W to 150W for 100/115/230 VAC input and from 50W to 90W for 85-265 VAC universal input. The TOP224YN brings TOPSwitch technology advantages to many new applications, i.e. TV, Monitor, Audio amplifiers, etc.

Parametrics

TOP224YN absolute maxing ratings: (1)Drain Voltage: -0.3 to 700 V; (2)Drain Current Increase (DID) in 100 ns except during blanking time: 0.1 × ILIMIT(MAX); (3)Control Voltage: -0.3 V to 9 V; (4)Control Current: 100 mA; (5)Storage Temperature: -65 to 125 ℃; (6)Operating Junction Temperature: -40 to 150 ℃; (7)Lead Temperature: 260 ℃; (8)Thermal Impedance: Y Package (θJA): 70 ℃/W; (θJC): 2 ℃/W; P/G Package (θJA): 45 ℃/W(7); 35 ℃/W; (θJC): 5 ℃/W.

Features

TOP224YN features: (1)Lowest cost, lowest component count switcher solution; (2)Cost competitive with linears above 5W; (3)Very low AC/DC losses-up to 90% efficiency; (4)Built-in Auto-restart and Current limiting; (5)Latching Thermal shutdown for system level protection; (6)Implements Flyback, Forward, Boost or Buck topology; (7)Works with primary or opto feedback; (8)Stable in discontinuous or continuous conduction mode; (9)Source connected tab for low EMI; (10)Circuit simplicity and Design Tools reduce time to market.
