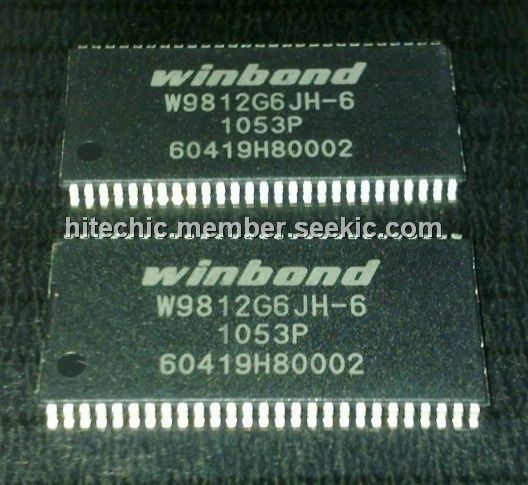

Product Summary
The W9812G6JH-6 is a high-speed synchronous dynamic random access memory (SDRAM), organized as 2M words × 4 banks × 16 bits. The W9812G6JH-6 delivers a data bandwidth of up to 200M words per second. For different applications, it is sorted into the following speed grades: -5/-6/-6I/-6A and -75.
Parametrics
W9812G6JH-6 absolute maximum ratings: (1)Input, output voltage: -0.5 to VDD+0.5 (≤4.6V max.) V; (2)Power supply voltage: -0.5 to 4.6V; (3)Operating temperature for -5/-6/-75: 0 to 70℃; (4)Operating temperature for -6I/-6A: -40 to 85℃; (5)Storage temperature: -55 to 150℃; (6)Soldering temperature: 260℃; (7)Power dissipation: 1W; (8)Short circuit output current: 50mA.
Features
W9812G6JH-6 features: (1)3.3V ± 0.3V power supply; (2)Up to 200 MHz clock frequency; (3)2,097,152 words ×4 banks ×16 bits organization; (4)Self refresh mode; (5)CAS latency: 2 and 3; (6)Burst length: 1,2,4,8 and full page; (7)Burst read, single writes mode; (8)Byte data controlled by LDQM, UDQM; (9)Auto-precharge and controlled precharge; (10)4K refresh cycles/64ms; (11)Interface: LVTTL; (12)Packaged in TSOP II 54-pin, 400 mil using lead free materials with ROHS compliant.

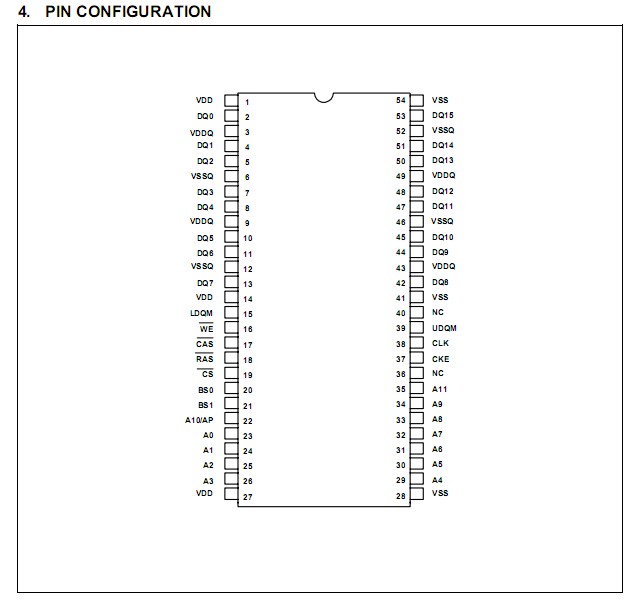

Diagrams
