Product Summary

Audio Performance

DAC SNR 98dB (‘A’ weighted @ 48kHz)

THD -81dB (‘A’ weighted @ 48kHz)

DAC Sampling Frequency: 8kHz – 96kHz

Pin Selectable Audio Data Interface Format

Parametrics

- I2S, 16-bit Right Justified or 16bit DSP

 2.0 Vrms output at 12V or 9V supply

8.2V to 13.2V Analogue, 2.7V to 3.6 Digital Supply

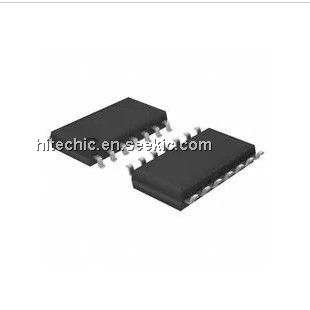

14-pin SOIC Package

Features

- I2S, 16-bit Right Justified or 16bit DSP

 2.0 Vrms output at 12V or 9V supply

8.2V to 13.2V Analogue, 2.7V to 3.6 Digital Supply

14-pin SOIC Package

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
WM8521HCGED/RV
WM8521HCGED/RV
Wolfson Microelectronics
Audio D/A Converter ICs Stereo DAC 2Vrms
Data Sheet
0-3000: $0.57
3000-6000: $0.54
WM8521HCGED/V
WM8521HCGED/V
Wolfson Microelectronics
Audio D/A Converter ICs Stereo DAC 2Vrms
Data Sheet
0-1: $1.06
1-50: $0.89
50-100: $0.71
100-500: $0.62
