Product Summary

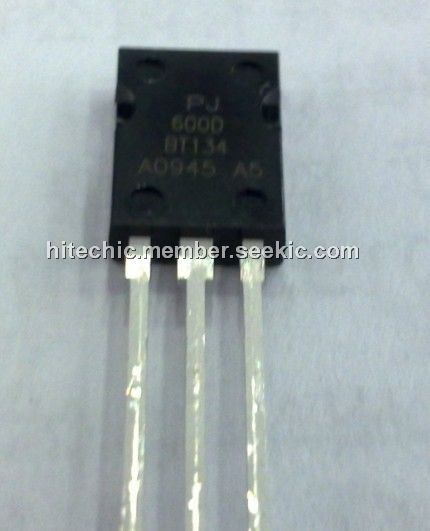

The BT134-600E is a triacs sensitive gate. Glass passivated triacs in a plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical Repetitive peak off-state applications include motor control, industrial and domestic lighting, heating and static switching.
Parametrics
BT134-600E absolute maximum ratings: (1)IT(RMS) RMS on-state current Non-repetitive peak on-state current: 4A; (2)ITSM, t = 20 ms: 25 A; t = 16.7 ms: 27 A; (3)I2T, t = 10 ms: 3.1A2s; (4)dIT/dt, ITM = 6 A; IG = 0.2 A; dIG/dt = 0.2 A/μs: 50 A/μs; T2- G+: 10 A/μs; (5)IGM Peak gate current: 2 A; (6)VGM Peak gate voltage: 5 V; (7)PGM Peak gate power: 5 W; (8)PG(AV) Average gate power over any 20 ms period: 0.5 W; (9)Tstg Storage temperature: -40 to 150℃; (10)Tj Operating junction temperature: 125℃.
Features
BT134-600E features: (1)VDRM Repetitive peak off-state voltages: 600V; (2)IT(RMS) RMS on-state current: 4 A; (3)ITSM Non-repetitive peak on-state current: 25A.

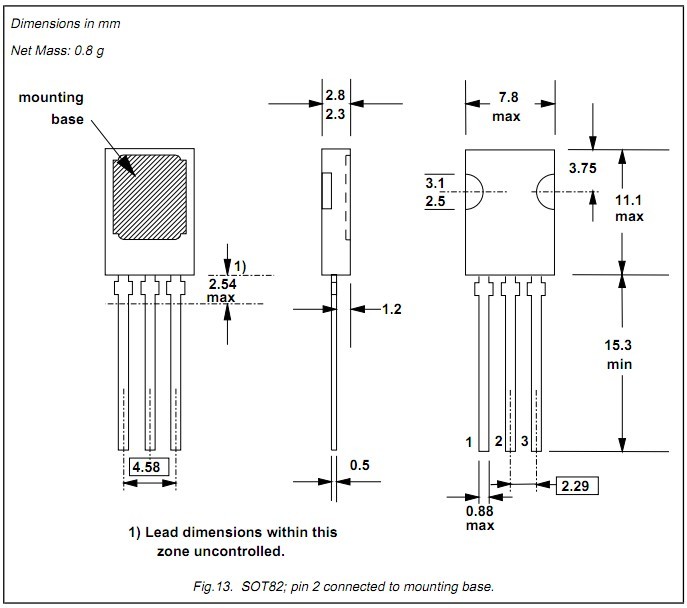

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BT134-600E |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BT134-600E,127 |
NXP Semiconductors |
Triacs RAIL TRIAC |
Data Sheet |
|
|
||||||||||||
