Product Summary

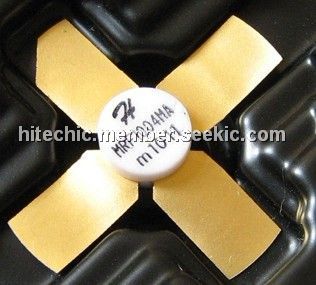

The MRF1004MA is an NPN silicon rf power transistor. It is designed for Class B and C, TACAN, IFF, and DME Applications up to 1090 MHz.
Parametrics
MRF1004MA absolute maximum ratings: (1)IC: 250 mA; (2)VCE: 20 V; (3)PDISS: 7.0 W @ TC = 25℃; (4)TJ: -65 ℃ to +200 ℃; (5)TSTG: -65 ℃ to +150 ℃; (6)θJC: 25.0 ℃/W.
Features
MRF1004MA features: (1)Class B and C Operation; (2)Common Base; (3)PG = 10 dB at 4.0 W/1090 MHz; (4)Omnigold Metalization System.
