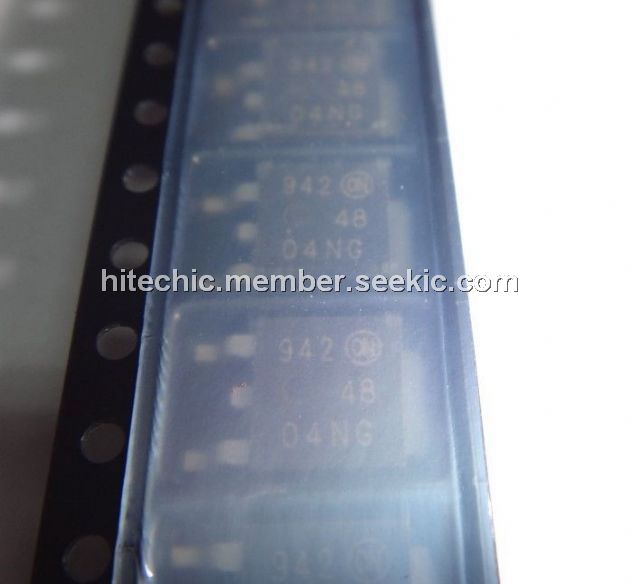

Product Summary
The NTD4804 is a Power MOSFET. Applications include: CPU Power Delivery, DC--DC Converters, Low Side Switching.
Parametrics
NTD4804 absolute maximum ratings: (1)Drain--to--Source Voltage VDSS: 30 V; (2)Gate--to--Source Voltage VGS: ±20 V; (3)Continuous Drain Current (RθJA) ID: 19 A; (4)Power Dissipation(RθJA) PD: 2.5 W; (5)Pulsed Drain Current IDM: 230 A; (6)Current Limited by Package IDmaxPkg: 45 A; (7)Operating Junction and Storage Temperature TJ, Tstg: - 55 to 175℃; (8)Source Current (Body Diode) IS: 78 A; (9)Drain to Source dV/dt dV/dt: 6.0 V/ns; (10)Single Pulse Drain--to--Source Avalanche Energy (VDD = 24 V, VGS = 10 V, L = 1.0 mH, IL(pk) = 30A, RG = 25Ω)EAS: 450 mJ; (11)Lead Temperature for Soldering Purposes(1/8 from case for 10 s)TL: 260℃.
Features
NTD4804 features: (1)Low RDS(on) to Minimize Conduction Losses; (2)Low Capacitance to Minimize Driver Losses; (3)Optimized Gate Charge to Minimize Switching Losses; (4)These are Pb--Free Devices.

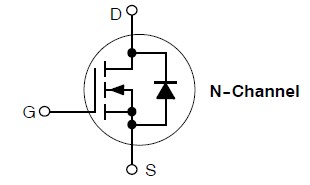

Diagrams
